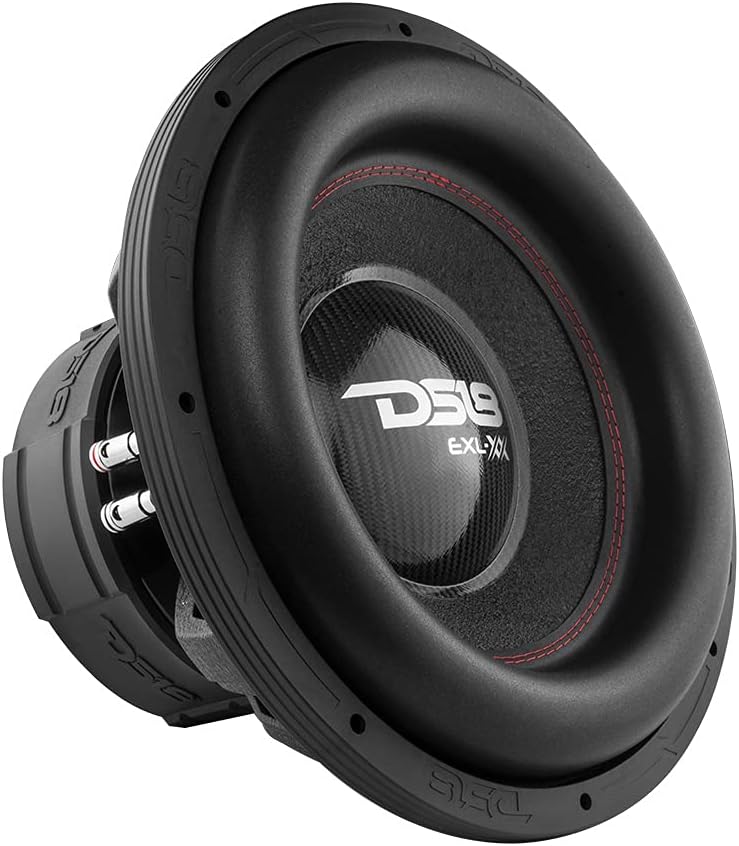

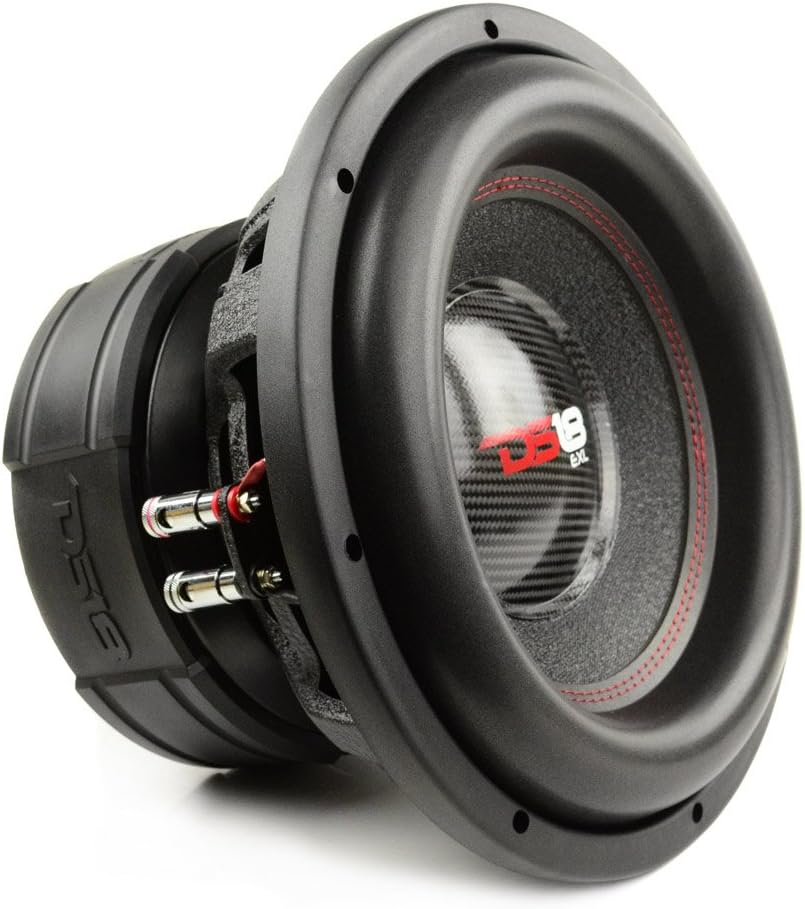

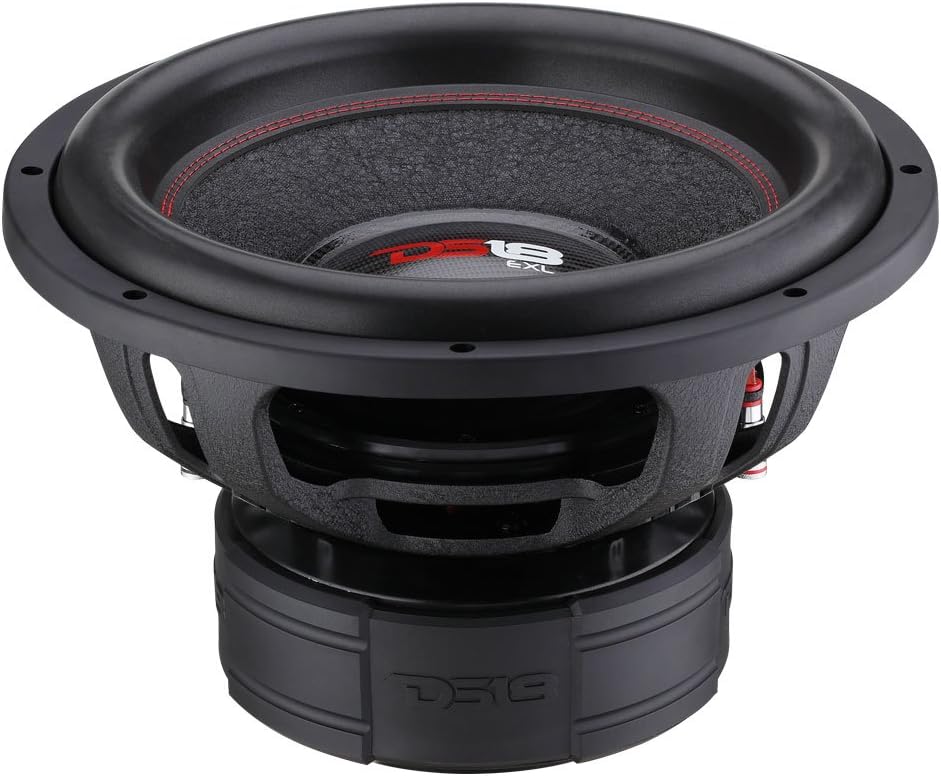

15” High Excursion Car Subwoofer 4000 Watts Dual Voice Coil 2+2 Ohms M791684
15” High Excursion Car Subwoofer 4000 Watts Dual Voice Coil 2+2 Ohms M791684
DUAL VOICE COIL (DVC) - Provides multiple options and flexibility to wire Parallel, Series, or Independent. While typical subwoofers have a single voice coil, the EXL
UNMATCHED ENGINEERING - The EXL series of subwoofers come with Three-inch black aluminum voice coil for high power handling and great efficiency to ensure top quality.
High Excursion surround for a very high amount of xmax.
NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market
DS18 EXL-XX15.2HE
High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point.
Specifications
Nominal Diameter 15”
Nominal Impedance 2+2 ohms
RMS Power Handling 2000W
MAX Power Handling 4000W
Sensitivity (1w/1m) 88 dB
Frequency Response 20-1.5KHz
Recommended Lo Pass Crossover 80 Hz
Motor:
VC Diameter 3” / 75.6mm
VC Former Material Black Aluminum
Winding Material CCAW
Cone Material Paper
Dust Cap Material Glass Fiber
Surround Material Foam
Basket Material Aluminum
Basket Color/Finish Black
Magnet Material Ferrite
Magnet Weight 306 Oz
Displacement Volume 3.26L
Thiele & Small Parameters
Equivalent Vol Vas 31.976L
Excursion(one way) Xmax 42 mm
Free Air Resonance Fs 34.9 Hz
Mechanical Factor Qms 5.159
Electrical Factor Qes 0.584
Total Factor Qts 0.525
Moving Mass Mms 440.158 g
Compliance Cms 0.026 mm/N
Bl Factor BL 18.453
VC Inductance Le 8.562 mh
Diaphragm Area Sd 804.25 cm²
Dc Resistance Re 2 + 2 ohms
Efficiency Bandwidth Product EBP 59.7
Measurements
Overall Diameter 15.59” / 396mm
Overall Depth 10.24” / 260mm
Front Mount Baffle Cutout 13.98” / 355mm
Mounting Depth 8.86” / 225mm
Motor Diameter 8.86” / 225mm
